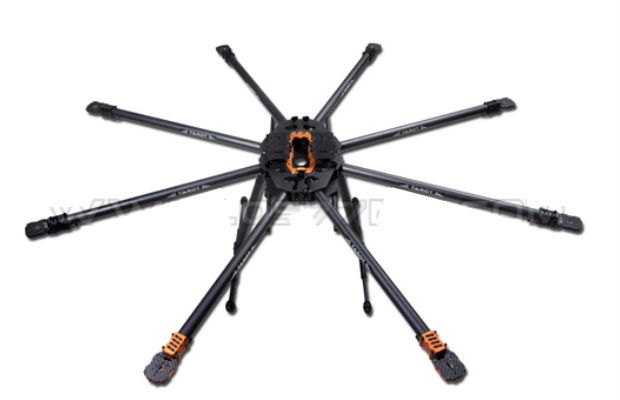

TAROT T15 Foldable Octacopter Frame Kit Carbon Fiber TL15T00

This T15 foldable Octa-copter is widely used in UAV aerial photography, remote sensing, mapping, airborne reconnaissance,disaster monitoring, cable transmission line, and other agricultural plant protection for mobile high performance requirements, equipment containing material and requires a longer endurance of blank applications.

The Tarot T15 Specifically designed to meet 5DII, RED EPIC, C300, FS100, FS700 and large video equipment developed by professional aerial vehicle.

T15 eight-axis folding rack overall net imports of Toray carbon fiber 3K woven by high temperature and pressure prefabricated full CNC precision machining, pure carbon 2.5MM thick matte twill carbon fiber quality beyond conventional commercially available products, with flatness, weight light, creep resistance, high compressive strength and shock resistance and other characteristics, the overall performance beyond the state required standard level performance metrics.

Features full body matte finish to prevent sunlight reflecting the impact of camera effects. Folding lines can be directly equipped with safe, reliable, avoid the use of connectors to connect the circuit caused by an accident.

T15 eight-axis folding rack removable battery holder uses detachable design allows the battery when you receive a shock from the body , reducing the potential impact on the body damage. Bit -shaped design prevents the battery tie off . Multiaxial metal locking clip seat folded portion innovation adoption ¢ 40 Falcon riveted metal dovetail design, with a strong clamping force, its strength is higher than the transverse locking fixed carbon tube locking strength. Excellent damping slip feel unusual feeling when you bring quick fold.

Folding rack full thread structure using carbon nanotubes which have a unique design self-locking screw technology, with excellent resistance to lateral vibration. Lightweight two-tone multi rotor motor mount CNC machining, the overall design has a strong perspective effect, providing a striking visual direction for the body in the air. Carbon nanotube metal bracket connecting point damping design dovetail groove metal hook thread with full carbon tube phase, with excellent adhesion.
Standard mount rod diameter Φ12MM, applicable to all mount rod center distance 155MM PTZ used.
Standard GPS antenna quick folding seat, folding carry more convenient.
Eight- standard high-current slip the lock gilded hub.
Standard multi-axis folding tripod more convenient to carry.

share


$1,367.70
AUD $1,367.70
    • Tube diameter: 25MM
    • Wheelbase: 1020MM
    • Rack Diameter: 1070MM
    • Total height: 420CM
    • Center Cover Size: 301 x 209 x 2.5MM
    • Motor mounting pitch: 16MM/19MM/25MM/27MM equilateral triangle installation



    Suggested setting (not included):

    • Rotor Size: 15-inch carbon fiber propeller TL2831/TL2813/TL2812
    • Brushless Motor: 4114/320KV multiaxial brushless motor TL100B08-02/TL100B08-01
    • Battery Specifications: 6S 22.2V 10000-15000MHA
    • ESC:35-40A Brushless ESC
    • Standard mount rod diameter Φ12MM, applicable to all mount rod center distance 155MM PTZ Use
    • Effective allocation of the whole weight: 11KG
    • Eight fold axis rack Weight: 1.95KG



    Suggested Accessories can be found on Tarot-rc website

    • Quick release battery holder TL15T01 x 2
    • Seat post quick release aluminum group TL15T02 x 2
    • Metal reinforcing plate TL15T03 x 1
    • T15 folding frame full carbon tubes TL15T04 x 4
    • Tarot T15 folding frame full carbon tubes TL15T05 x 4
    • Tarot T15/T18 eight fold axis bracket TL15T06 x 2
    • T15 folded eight shaft cover TL15T07 x 1
    • GPS folding bracket TL15T08 x 1
    • T810/T960 six-axis folding tripod TL96013 x 1
    • Multi-axis limit gasket/ four loaded TL96021 x 4
    • T810/T960 head mount kit TL96014 x 1
    • Eight- hub group TL100B14 x 1
    • Multiaxial metal locking clip holder TL9605 x 8
    • New Φ25MM motor mount / Orange TL9602 x 2
    • New Φ25MM Motor Mount / Black TL9603 x 6
    • Titanium diamond file x 1
    • Water sticker group x 8
    • Colored sticker set point x 2
    • Magic sticky x 2
    • Manual x 1
    • Spare screw pack x 1
    • Packaged x 1
  • Domestic Shipping starts at $47.00 for this item plus $10.00 for each additional item . International Shipping starts at $61.00 for this item plus $20.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
