Tenink 30A Brushless ESC Electronic Speed Control for RC Multi-rotor Aircrafts Multicopters (D16mm Tube)

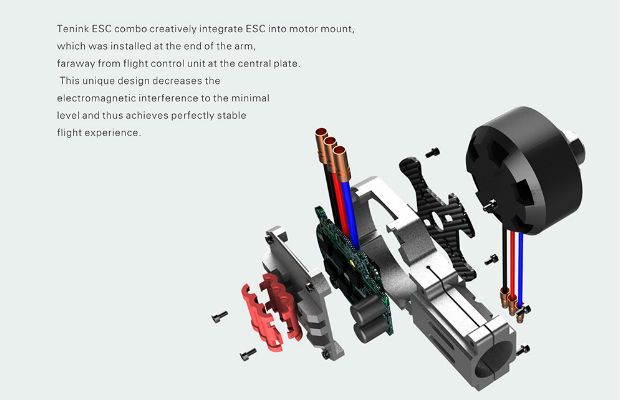

Tenink invented the world's first integrated brushless ESC combo designed specifically for multicopter and features minimal electromagnetic interference, smart start-up algorithm, instant throttle response and wide range of motor Kv adaptation, altogether makes it the best choice for multi-rotor aircrafts.

  • Brushless ESC combo, simply the best solution to electromagnetic interference.
  • Specially programmed firmware for multi=rotor aircrafts with smart start-up algorithm
  • The highest 500Hz throttle signal frequency, boasting instant throttle response and stable flight.

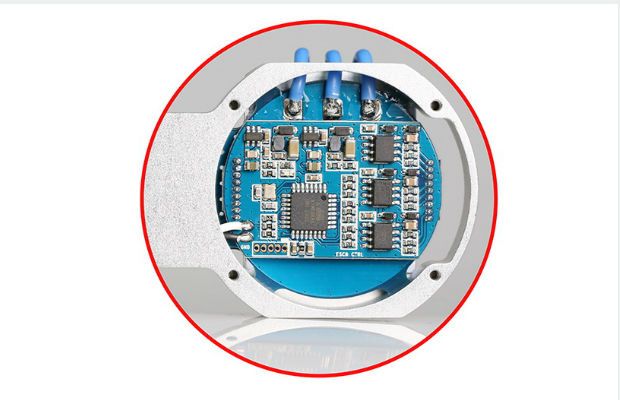

  • Loaded with lowest resistance MOSFET which can burst the electricity conversion rate to 95%

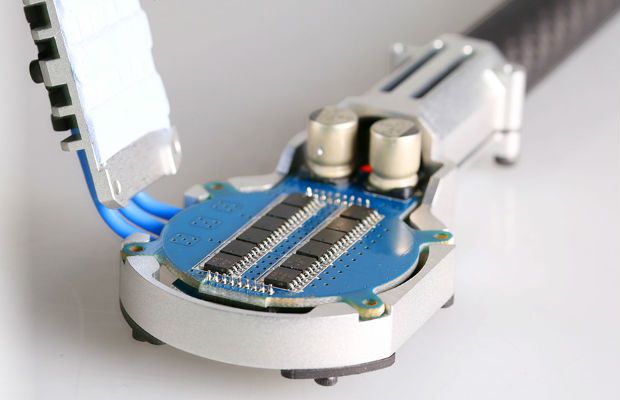

  • 2 low ESR aluminium electrolytic capacitor with longer life and higher current carrying ability, simply the best protection for internal electrical circuit.
  • The shell is forged with toughest aerial aluminium and fitted with carbon fiber motor mount, which weights only one fifth of the iron while 5 times tougher than iron.
  • Industrial water - resistence design
  • Designed to avoid overheat
  • better compatibility with wider range motor Kv
  • Compatible with wide range of voltage input

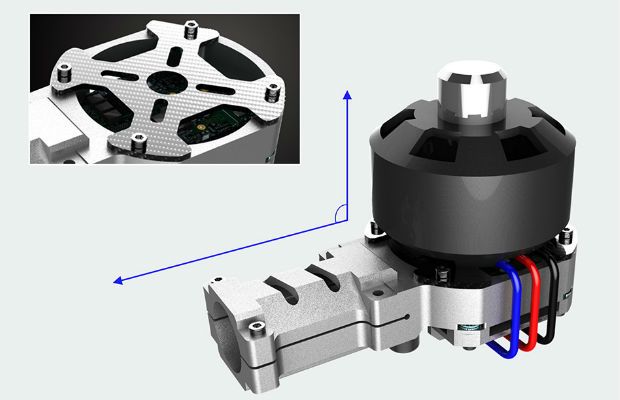

  • Loose-proof machanism designed for easy installation



share


$110.00
AUD $110.00

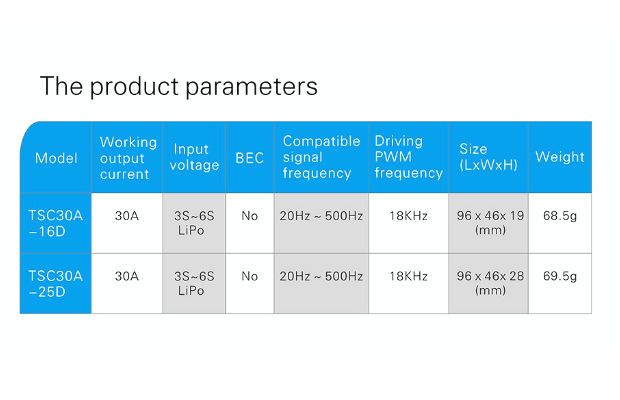

    • Working current: 30A
    • Power input: 3-6S Lipo
    • BEC output: No
    • Compatible frequency: 20Hz - 500Hz (flight controller control signal)
    • PWM: 18Khz
    • Wire length: 50cm (approx.)
    • Connector type to motors: 3.5mm bullet type (banana type)

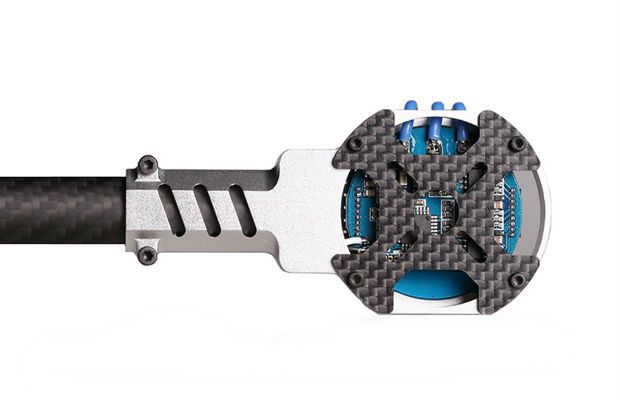

    • Motor mount material: 7075 aerial Aluminium
    • Mounting hole spacing: 15mm/ 30mm

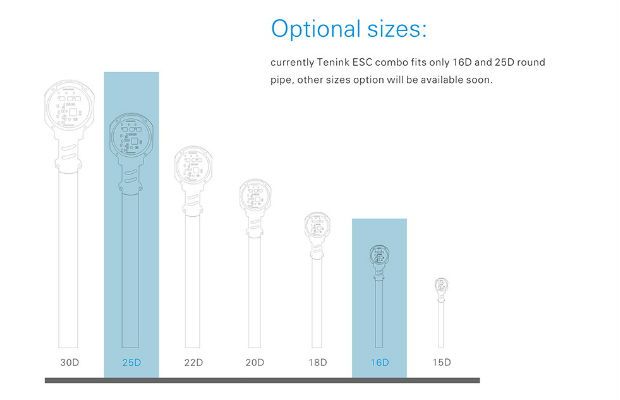

    • Suitable arm outer diameter: 16mm
    • Production process: CNC
    • Dimension: 96 x 46 x 19mm
    • Combo overall weight: 73g (including wire, excluding motor)

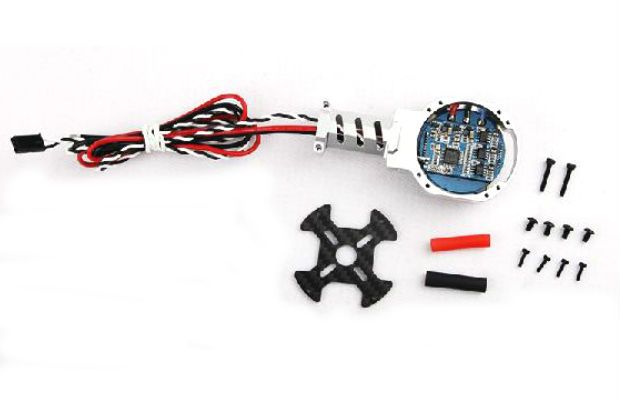

    • 1 x ESC & motor mount assembly
    • 1 x screw bag & shrinking tube



    * Motor is NOT included.
