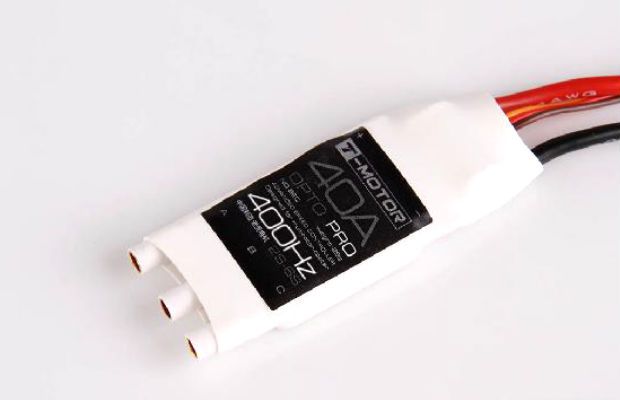

T-MOTOR 40A OPTO Speed Controller ESC T40A PRO

This T-Series PRO ESC compatible for RC airplane and helicopter and multiroto-copter.

  • High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
  • Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
  • Smooth, linear, quick and precise throttle response.
  • Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
  • The throttle signal is transferred through optical/electrical coupled system to avoid electromagnetic interference.
  • Perfect governor mode for Multiro-copter.
  • Wide-opened heat-sink has the best heat dissipation effect.
  • The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.

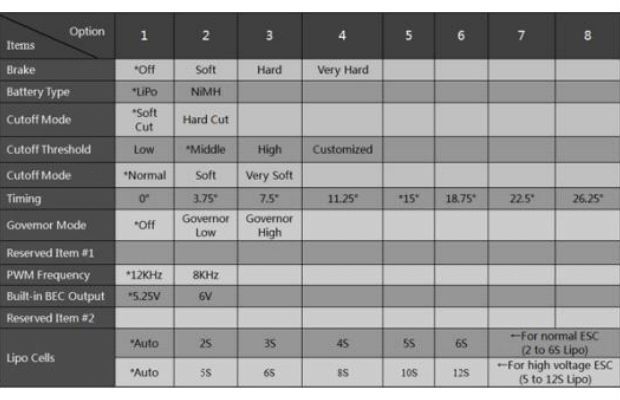

  • User programmable.
  • Multiple program methods supported: transmitter stick, Digital LED Program Card, Multifunction LCD Program Box, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.

share


$61.00
AUD $61.00
    • Output: Continuous 40A, burst 60A up to 10 seconds.
    • Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.
    • Refresh rate of the throttle signal: 50Hz to 432Hz.
    • Control Signal Transmission: Optical/electrical coupled system.
    • Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = BrushLess Motor)
    • Size: 59mm (L) * 27mm (W) * 12mm (H).
    • Weight: 29g.
    • Built-in connector type: 3.5mm banana type (connectors for motor side are not included)
    • 1 x ESC
