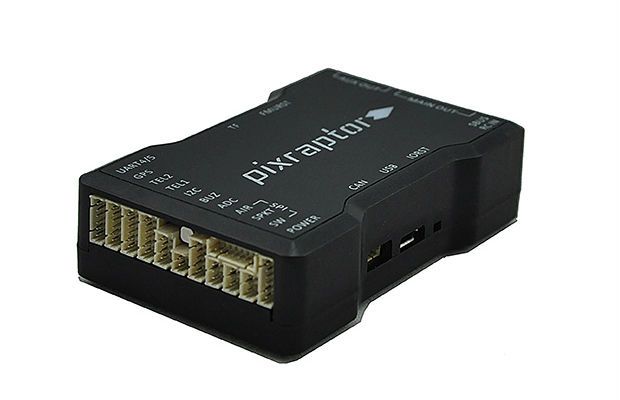

Pixraptor Flight Controller W/ Buzzer Safe Switch

  • - 32-bit STM32F427 Cortex-M4F core processor (integrated floating-point unit)
  • - 32-bit STM32F100 coprocessor (supports independent control of the main processor at failure, only the use of fixed-wing)
  • - 14-channel PWM servo signal output (8-channel support fail-safe manual control when, six auxiliary outputs, compatible with high voltage servos)
  • - Large number of external device interface options (including multiple UART, I2C, CAN, SPI, etc.)
  • - Integrated backup system reboot and manually take over the support of air-core processor for manual control, the backup system has a separate power supply system (fixed-wing only)
  • - Backup system can achieve automatic autopilot and manually mixing control (fixed-wing only)
  • - Simultaneously support multiple power supply and automatically select the optimal set of input
  • - Coprocessor is equipped with an external independent safety switch and LED status indicators
  • - Onboard full color OSRAM LED status indicators, if necessary, external
  • - Can attach an external high-voltage piezoelectric buzzer
  • - Equipped with high-speed TF card expansion for log storage

share


$268.00
AUD $268.00

  • Sensor configuration:

    •  ST Micro L3GD20H 16 gyroscope
    •  InvenSense MPU6000 six-axis gyro accelerometer
    •  ST Micro LSM303D 14 accelerometer / magnetometer
    •  MEAS MS5611 barometer



    Interface configuration:

    • 5-channel UART serial port, serial port 1 supports high power output, serial port 1 and 2 support hardware flow control
    • 2-way CAN bus output (CAN1 has an internal 3.3V transceivers on the serial interface CAN2 complex 3 in)
    • Compatible Spektrum DSM / DSM2 / DSM-X® satellite receiver input
    • Compatible with Futaba S.BUS bus input and output
    • PPM PPM signal input
    • RSSI signal strength indicator input (supports PWM mode or voltage mode)
    • 1 Road I2C output, via breakout board for multiple extensions
    • 1-way SPI output
    • 1-way and one-way 3.3V 6.6V ADC input



    Power and protection measures

    • LTC4417 Triple priority power control system, superior to conventional simple diode scheme
    • Servo interface supports high voltage and high current (up to a maximum 7V)
    • All outputs are equipped with overcurrent protection, input interface is provided with anti-static ESD protection



    Size:

    • Weight: 63 g (with built-in only 8 g shock counterweight)
    • Dimension: 78*49*21mm
    • Pixraptor main control x 1

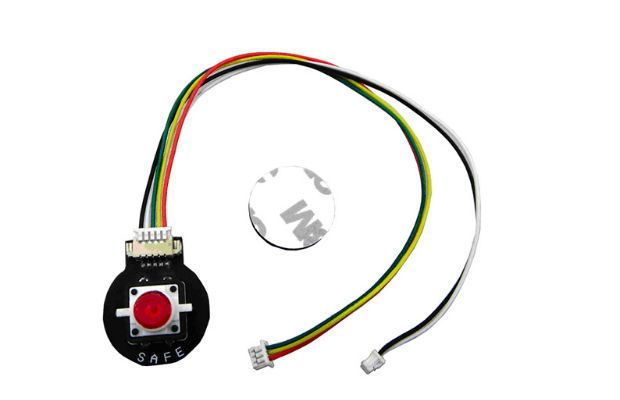

    • Safety switch (with buzzer) x 1
