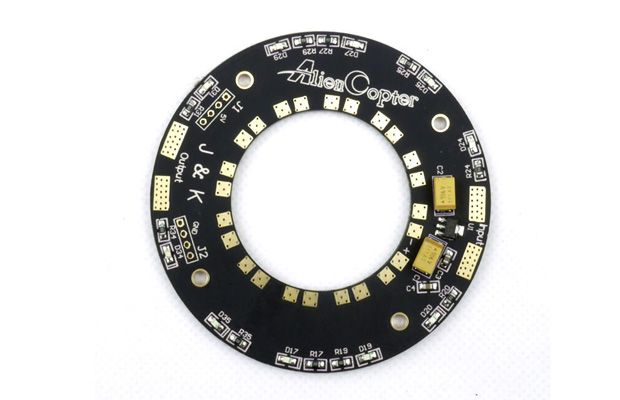

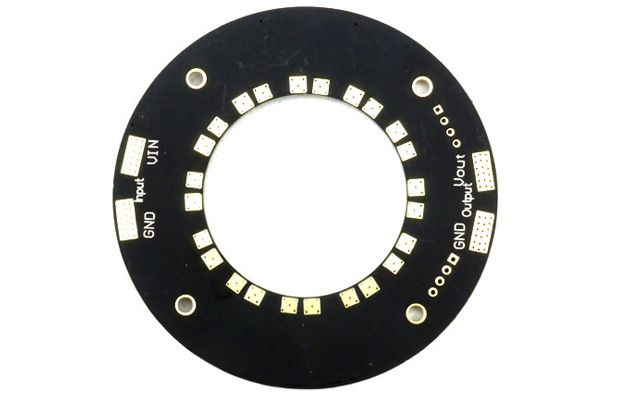

J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs

This is a power distribution hub specially designed for multi-rotor speed controller connection.

It makes the wiring of your multi-rotor system neater, nicer, securer.

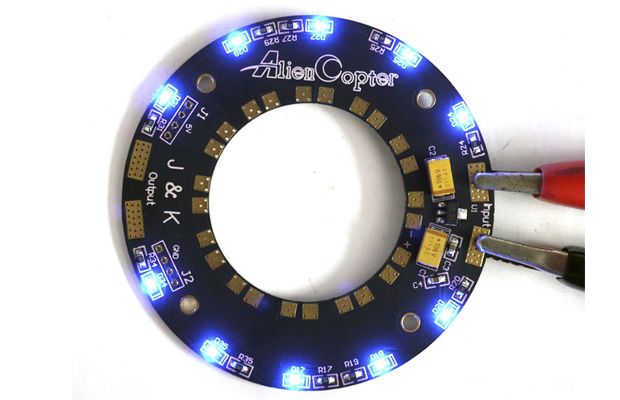

  • - With LED lights.
  • - 2 sets welding points for main power supply

Suit for multicopters up to 800mm in rotor spacing and working current no higher than 100A.

Installation method:

  • 1. Weld the power input wires of ESCs to the hub, suggested inner circle for "+", and outter circle for "-".
  • 2. Isolate the hub with tape or shrinking tube, or use double side tape to fix it to the main frame of your multi-rotor aircraft.

share


$15.00
AUD $15.00
    • Max ESC number: 12
    • Outer diameter: 77mm
    • Inner diameter: 40mm
    • Weight: 13g
    • Max voltage supported: 6S (the voltage regulating chips for LEDs will be burned when exceeding 6S for power input)
    • 1 x wiring hub
