J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs & Dual BECs

This is a power distribution hub specially designed for multi-rotor speed controller connection.

It makes the wiring of your multi-rotor system neater, nicer, securer.

  • LED lights.
  • Sets welding points for main power supply
  • Dual BEC output, one way is 10-20V adjustable, another way is 5V fixed.

Suit for multicopters up to 800mm in rotor spacing and working current no higher than 100A.

Installation hints:

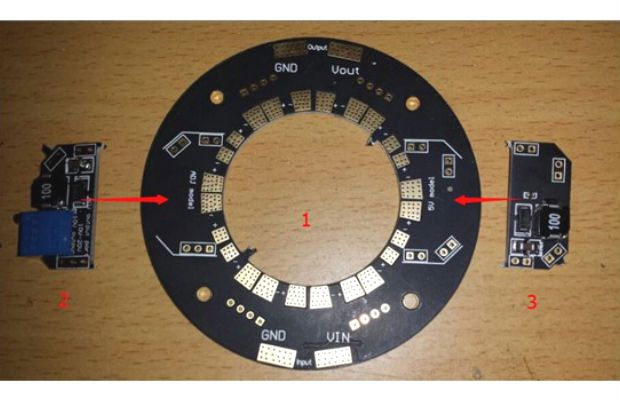

  • Two BEC modules need to be welded by customer, so welding skill is needed.


share


$37.00
AUD $37.00
    • Max ESC number: 12
    • Outer diameter: 77mm
    • Inner diameter: 40mm
    • Weight: 18g
    • Max voltage supported: 6S (the voltage regulating chips for LEDs will be burned when exceeding 6S for power input)
    • BEC output: one way 5V fixed, 3A; another way 10-20V adjustable, max 36W ( 3A @12V)

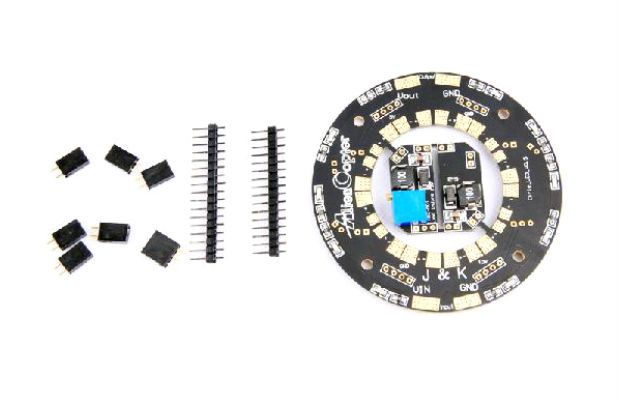

    • 1 x wiring hub
    • 1 x welding pin set
