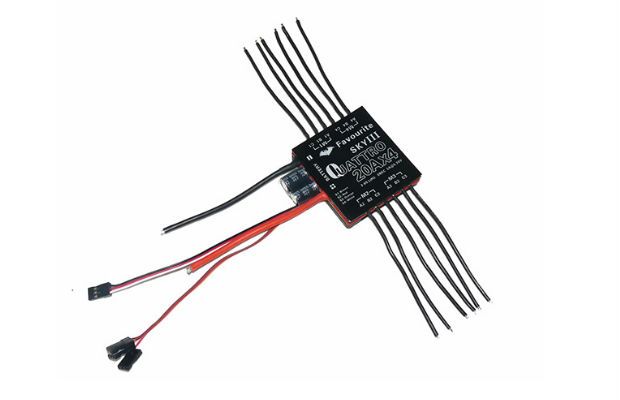

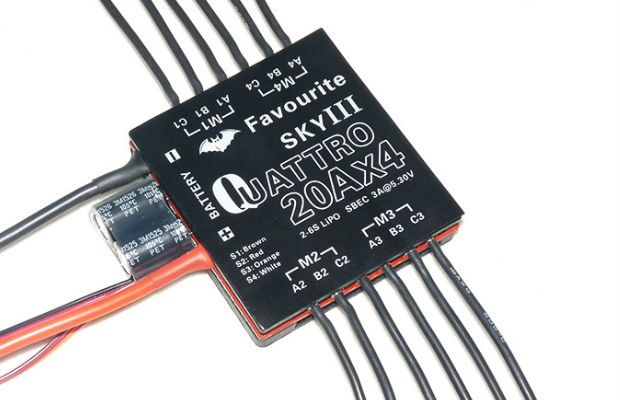

FAVOURITE Eagle Series Quattro 20A x4 Speed Control for Multi-rotors

  • Four (4) speed controllers in 1 board, only 1 pair of battery wire is needed.
  • Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
  • Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
  • User programmable.
  • Multiple program methods supported: transmitter stick. Very easy to program the ESC at home or at the flying field.
  • Compatible with Lipo battery and NiMH battery.
  • Internal timing can be changed to be suitable for different brushless motors.
  • Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
  • Microprocessors use separate voltage regulator IC for better anti-jamming capability.

share


$79.00
AUD $79.00
    • ESC in the Quattro: 4 in 1
    • Out: Continuous 20A, Burst 25A(10S )
    • Input Voltage: 2-6S Lipo
    • BEC: 5V/3A
    • Refresh rate throttle signal: 50Hz to 499Hz.
    • Size: 60mm*55mm*12mm.
    • Weight: 90g.
    • 1 x ESC



    Requires:

    • 1 x receiver (RX)
