Out of stock

share


$188.00
AUD $188.00

  • Parameter:

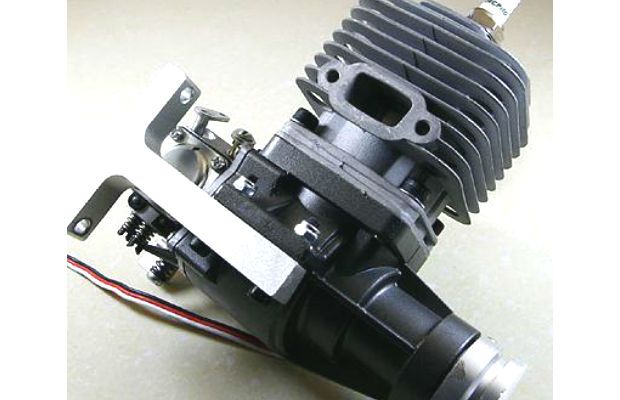

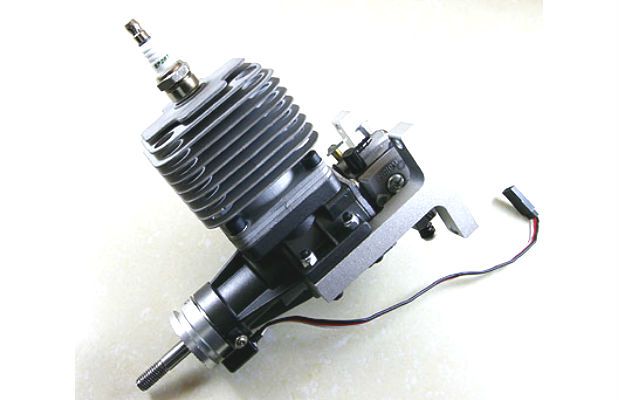

    • Type : 2 cycle piston valve type gasoline engine for aircraft
    • Displacement (cc) : 26cc
    • Bore x Stroke (mm): 34mm x 28.6mm

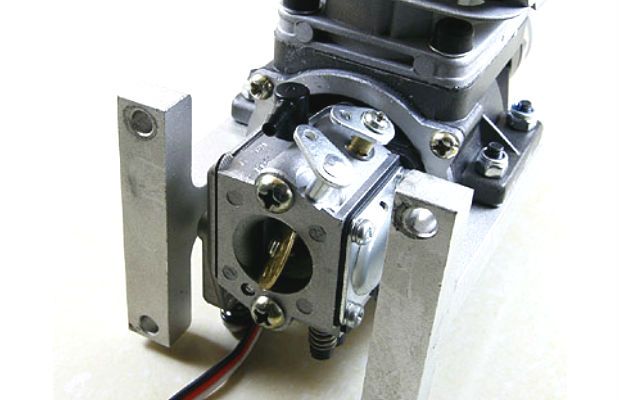

    • Carburetor : Walbro(Diaphragm butterfly valve type)
    • Maximum Output : 3.15ps /9000rmp
    • RPM rang : 1600-9000rpm
    • Weight: about 1100g (without ignition battery)
    • Fuel:Gas/Oil mix 25-35:1
    • Ignition power: 4.8V (auto advanced) (* Do not use 6V or higher for the CDI power supply. )
    • Propeller suggestion: 18x6, 18x8, 18x10, 19x6 (2-blade prop)
    • Glow plug type: CM6

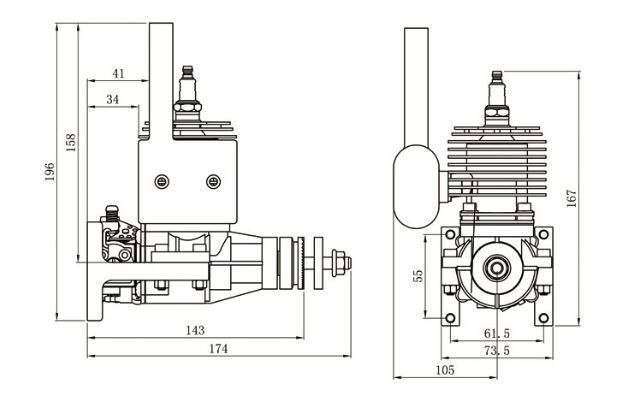

    Dimensions:

    • Width 100mm
    • Length: 175mm
    • height: 170mm (to top of glow plug), 130mm (to top of cylinder head)

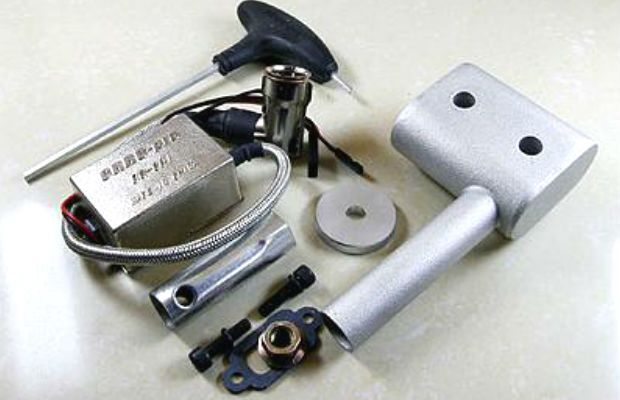

    • 1 x engine
    • 1 x CDI

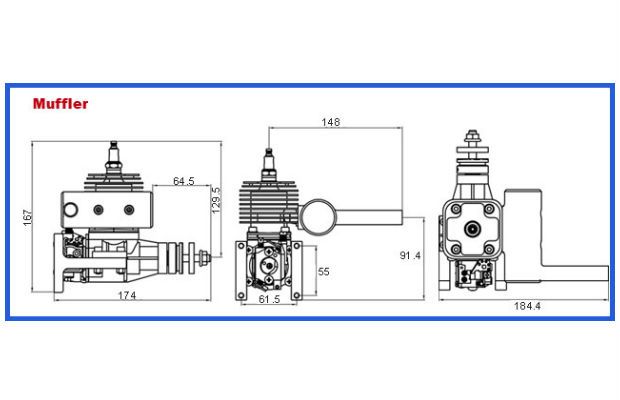

    • 1 x muffler
    • 1 x engine mount (standoffs)
    • 1 x manual
  • Domestic Shipping starts at $36.00 for this item plus $25.00 for each additional item . International Shipping starts at $49.90 for this item plus $33.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
