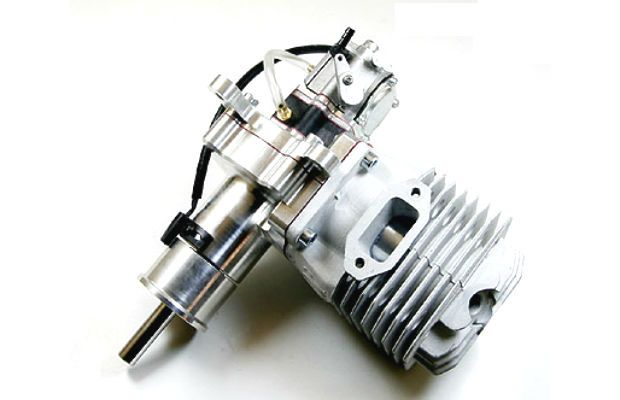

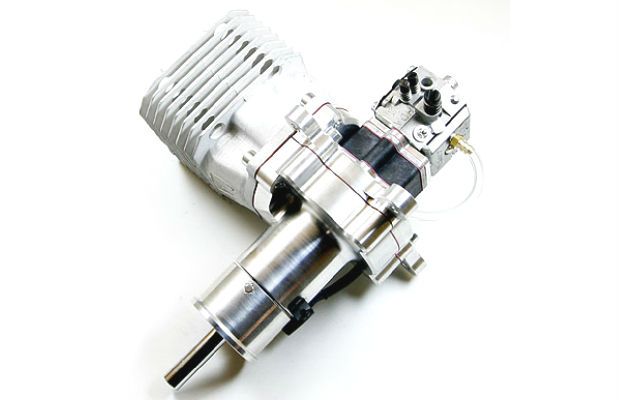

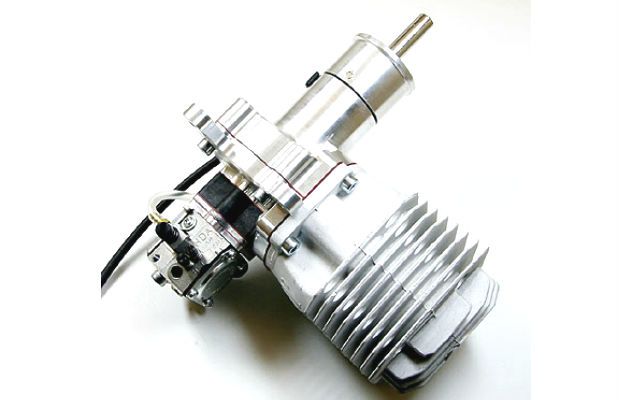

JC60 EVO 2-Stroke Gas/Petrol Engine

Engine Parameter:

• Engine type ： 2—Stroke gasoline engine
• Displacement：60cc
• Bore × Stroke: 45mm × 38mm
• park plug: NGK CM6 or JC CM6

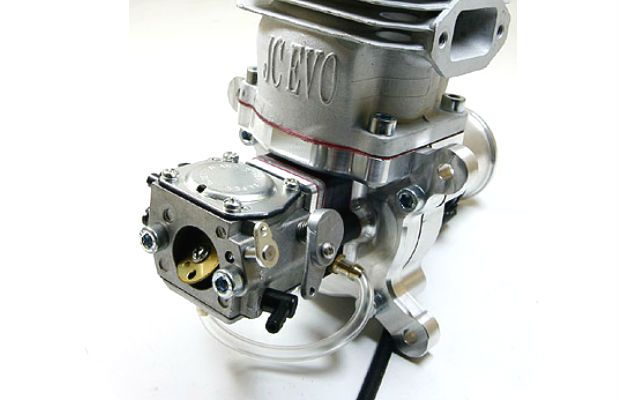

• Carburetor: Walbro special-designing vacuum pump diaphragm type duplex needle carburetor
• Max power ： 6.0hp/7500rpm
• Practical running speed ： 1100 － 7500rpm
• Net Weight ：1740g (incoulding CDI and muffler) Engine:1440g, pitts:180g, Ignition:120g,

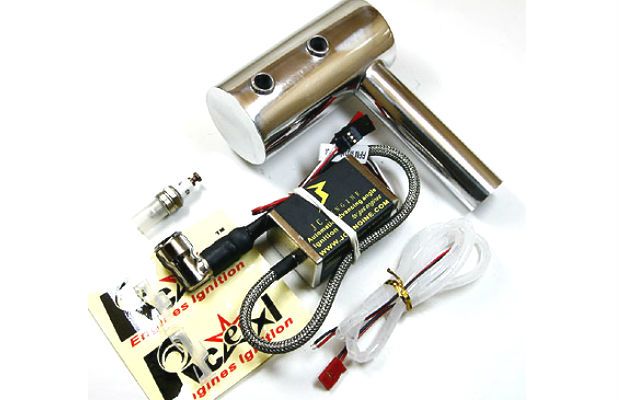

• Ignition system ： CDI battery ignition (battery voltage: 4.8v—6v)
• Grease oil ratio ： 25-30:1 used during the break-in (the initial 2 working hours); 35-40:1 used after the break-in.
• Screw propeller dimension ： 23*8, 23*10, 24*8, 24*10, 25*8

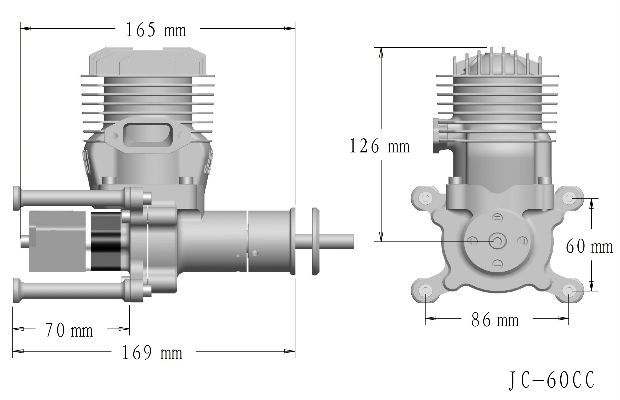

• Muffler interface inner size: 26 x 14.8mm (approx.)
• Muffler mounting hole spacing: 40mm (approx.)
