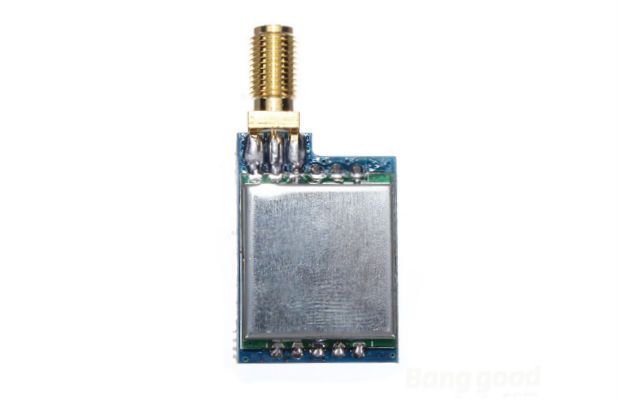

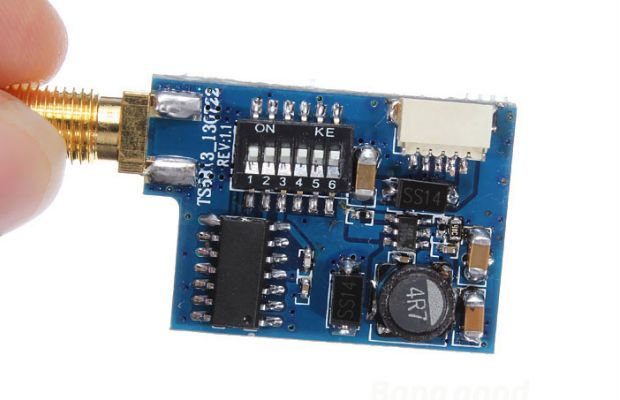

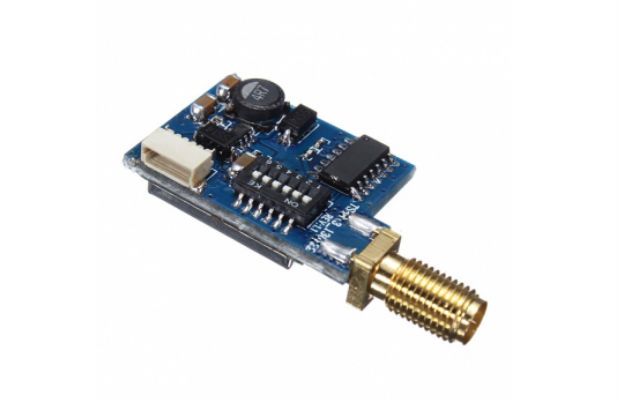

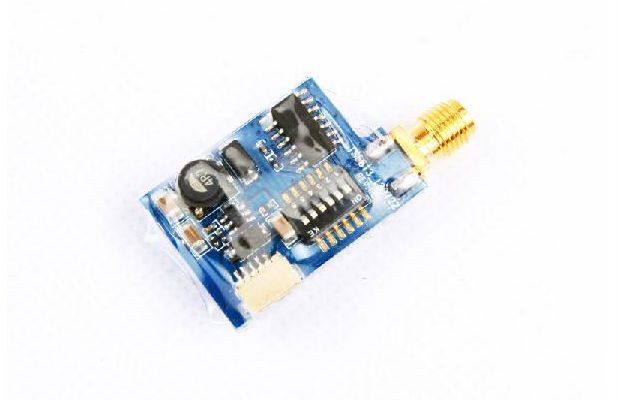

Super Mini 7.3g 200mW A/V Transmitter Module (TX)-32 Channel TS5823｜RP-SMA, Jack

Super mini, super light, specially designed for mini quadcopter/ multicopters.

share


$39.99
AUD $39.99

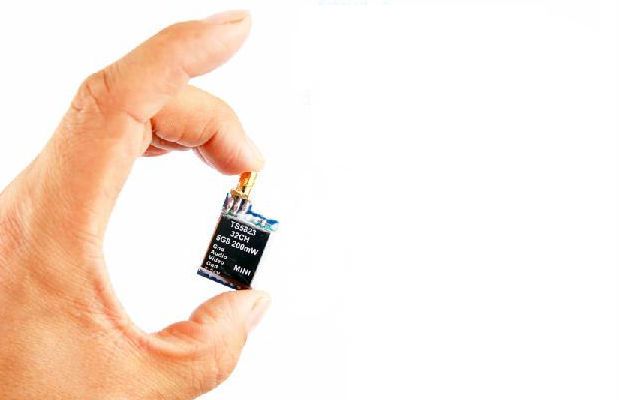

    • Transmitting unit weight: 7.3g (excluding antenna)
    • video format supported: NTSC/PAL

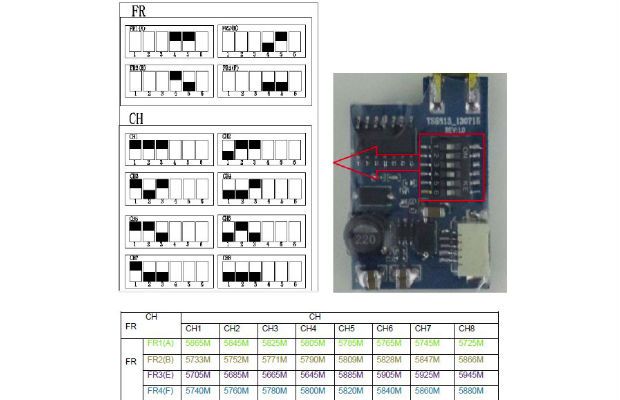

    • Working frequency: 5645-5945Mhz
    • Power input: 7-24V
    • Transmitting current: 190mA @ 12V
    • Video band width: 8M
    • Audio coding: 6.5M

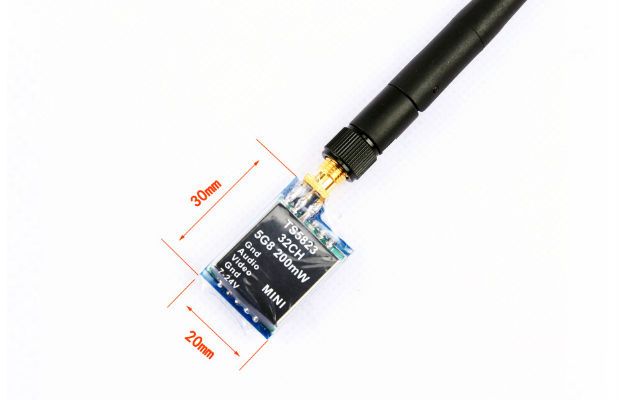

    • Dimension: 30*20*8mm (excluding antenna)
    • Antenna connection: RP-SMA jack (TX module side) Refer here for connector type diagram



    *Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

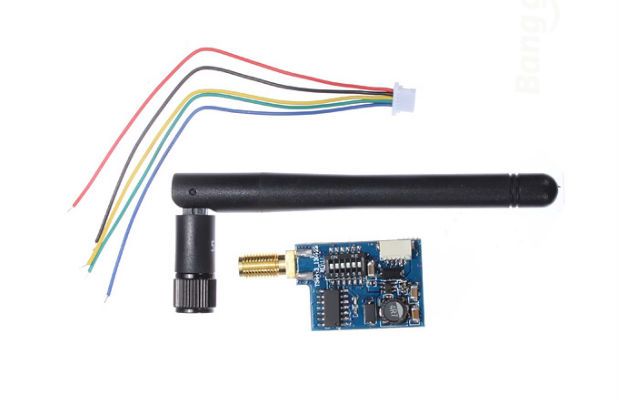

    • 1 x transmitting unit (TX)
    • 1 x TX antenna (2db)
    • 1 x special wire
    • * No instruction manual supplied with this product.



    Requires:

    • 1 x receiving unit (RX)
