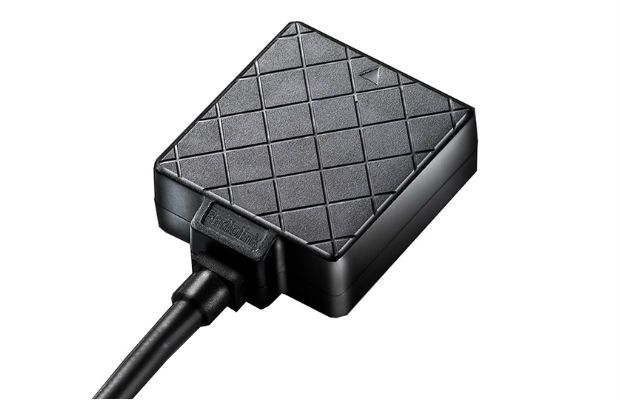

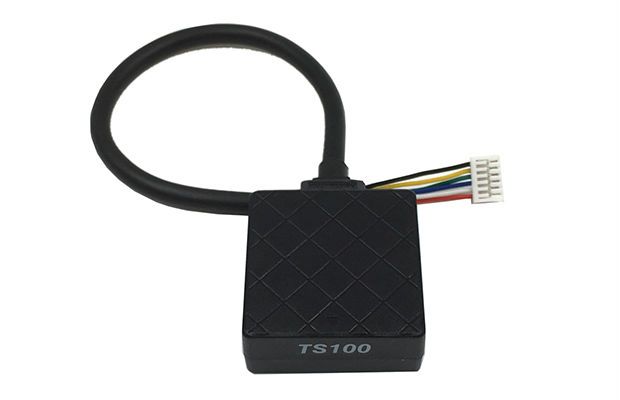

RadioLink M8N GPS Module TS100 W/ Compass for Mini PIX F4

share


$105.00
AUD $105.00
    • Size: 32*30*12mm
    • Weight: 20g
    • Positional accuracy: 50 centimeter precision when working with concurrent GNSS
    • Velocity precision: 0.1m/s
    • Max height: 50000m
    • Max speed: 515m/s
    • Max acceleration: 4G
    • Max update rate: up to 10Hz



    Sensitivity:

    • Tracking & Nav.: -167dBm, Reacquisition: -163dBm
    • Cold start: -151dBm, Hot start: -159dBm
    • Time to first fix: Cold start: 26s, Hot start: 1s



    Connect ports:

    • Power supply: voltage 5VDC+-5%, current 50~55mA

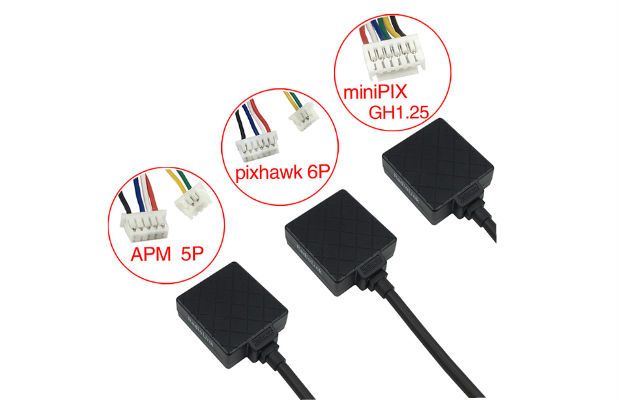

    Ports:

    • A. GPS UART interface
    • baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
    • B. Geomagnetic I2C interface
    • 1 x RadioLink M8N GPS Module TS100
  • Domestic Shipping starts at $0.00 for this item plus $6.00 for each additional item . International Shipping starts at $8.00 for this item plus $4.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
