PARTOM 1.2G 8CH 800mW A/V Transmitting/receiving System | SMA, Jack

share


$194.30
AUD $194.30
    • FPV 1.2G 800mW A/V system.
    • Transmitting unit weight: 78.5g/2.77oz
    • Transmitter channel number: 8-ch
    • Power input: 12V
    • Receiving current: 100mA
    • Transmitting current: 280mA
    • Receiver Channel number: 12-ch
    • Transmitting distance (air to ground): 800-1500m (for reference only, the distance may vary a lot depending on the environments)
    • Transmitter unit Dimension: 45 x 53x 19mm
    • Video signal resistance: 75Ω
    • Antenna connection: SMA jack (modules side, both TX and RX)

     Working frequencies:

    • 0.910G 0.980G 1.010G 1.040G
    • 1.080G 1.120G 1.160G 1.200G
    • 1.240G 1.280G 1.320G 1.360G
    • 1 x transmitting unit

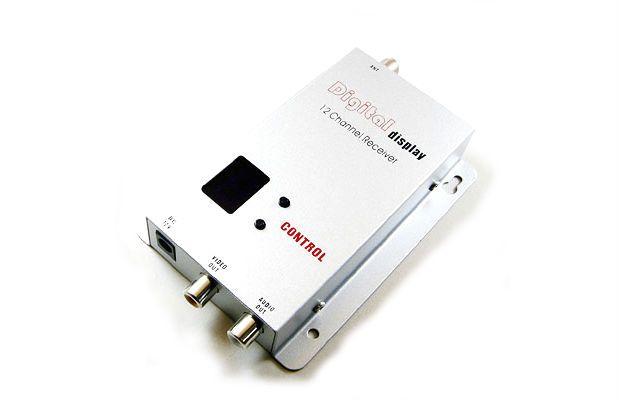

    • 1 x receiving unit
    • 1 x basic wires
    • 1 x instruction manual (English/Chinese)
  • Domestic Shipping starts at $16.00 for this item plus $3.00 for each additional item . International Shipping starts at $20.00 for this item plus $5.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
