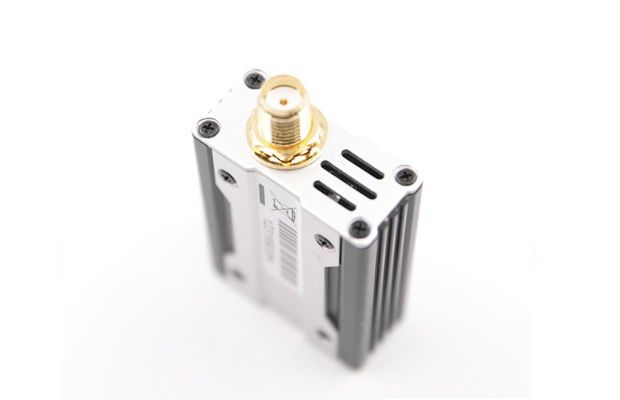

LawMate 1.2G 1000mW FPV Transmitter (VTX) TX-120015 (500mW/ 1000mW switchable)

  • 1W 1.2GHz A/V wireless transmitter module in compact size
  • 8 Audio/Video output frequencies for each transmitter
  • Integrated Circuit: Adopted digital phase locked loop circuit
  • With light aluminum housing, it weighs 17g

share


$277.00
AUD $277.00
    • - Model: TX-120015
    • - Frequency: 1200MHz
    • - Available Channels: 8-Ch
    • - Voice Frequency Carrier: 5.5MHz
    • - Working Voltage: DC 12V
    • - Working Current: 300 to 350mA
    • - Reverse Distance: 200m (Open Space)
    • - Transmission Power: 30±1dBm
    • - Power Consumption: 3.6W
    • - Operating Temperature: 0 to 60℃
    • - Working Humidity: 20 to 80%

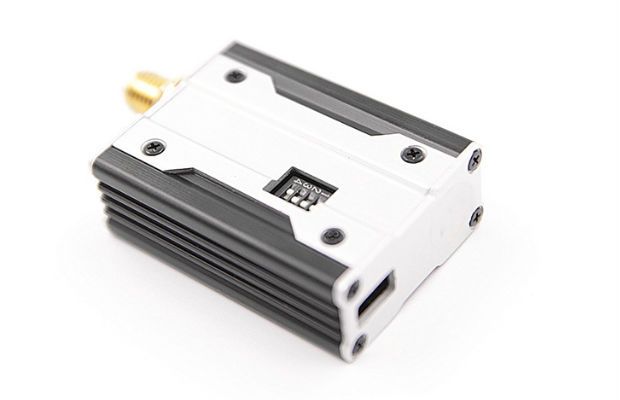

    • - Select Channels: Via Dip Switch
    • - Connector of Antenna: SMA
    • - Frequency Locking Method: Digital Phase Lock Loop
    • - Size: 37.5 x 27 x 12.6mm (L*W*H)
    • - Weight: 17±1g

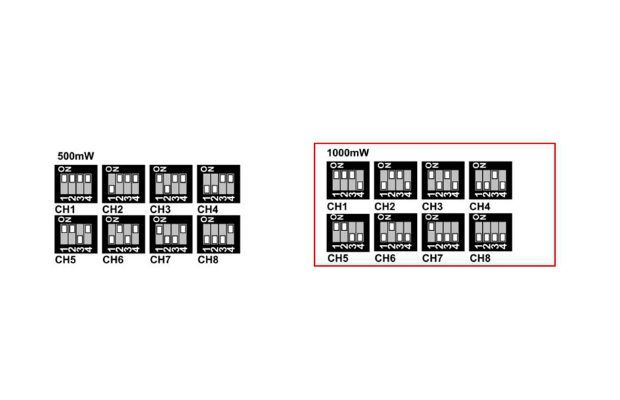

    Transmitter Channel List:

    • - Model: TX-120015
    • - Switch A/B of Receiver: B
    • - CH1: 1080
    • - CH2: 1120
    • - CH3: 1160
    • - CH4: 1200
    • - CH5: 1010
    • - CH6: 1040
    • - CH7: 1240
    • - CH8: 1280
    • 1 x transmitting module (TX only)
    • 1 x antenna



    Requires:

    • 1 x Receiver
