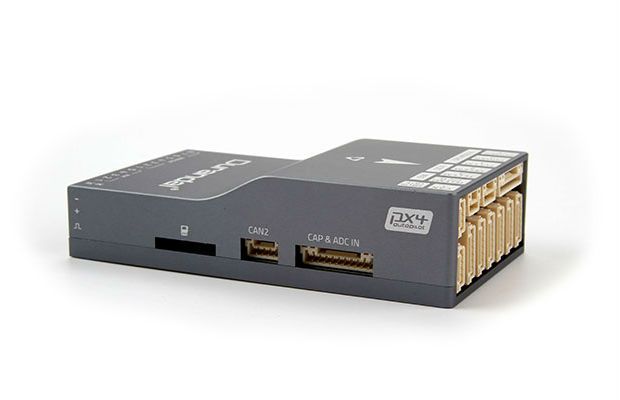

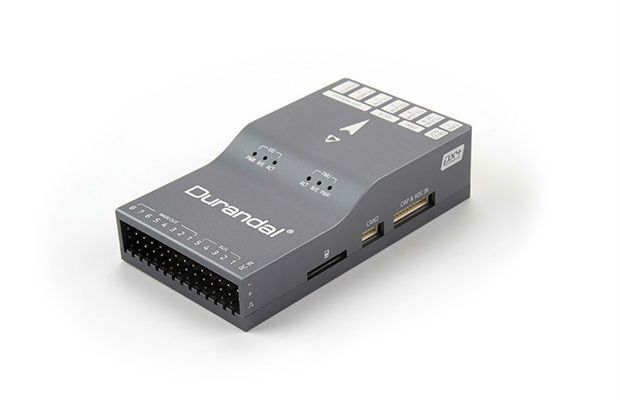

Holybro Durandal H7 Open-source Flight Controller W/ PM02 V3 Power Module

Durandal is a new flight controller designed by Holybro utilizing the STM32H7 microcontroller series.
As increasing number of drone companies and developers need to run more powerful models and build on more embedded memory capabilities, Durandal is designed to offer the performance upgrade for development needs. The advantage will come in handy with intensive calculation features is required.
Harnessing from our extensive autopilot building experience in the past years, we have implemented new vibration absorption system into the mechanical design of the hardware, and integrated IMU heater for sensors temperator control.
Durandal is pre-installed with PX4, and also supported by other flight stacks such as Ardupilot.

share


$607.70
AUD $607.70
    • Main FMU Processor: STM32H743
    • 32 Bit Arm ® Cortex®-M7, 480MHz, 2MB memory, 1MB RAM
    • IO Processor: STM32F100
    • 32 Bit Arm ® Cortex®-M3, 24MHz, 8KB SRAM
    • On-board sensors
    • Accel/Gyro: ICM-20689
    • Accel/Gyro: BMI088
    • Mag: IST8310
    • Barometer: MS5611



    GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310

    • serial port maping：
    • SERIAL0 -> USB
    • SERIAL1 -> UART2 (Telem1)
    • SERIAL2 -> UART3 (Telem2)
    • SERIAL3 -> UART1 (GPS)
    • SERIAL4 -> UART4 (Telem4 I2CB)
    • SERIAL5 -> UART6 (Telem3)
    • SERIAL6 -> UART7 (spare, debug)



    Voltage Ratings:

    • Power module output: 4.9~5.5V
    • Max input voltage: 6V
    • Max current sensing: 120A
    • USB Power Input: 4.75~5.25V
    • Servo Rail Input: 0~36V



    Mechanical Data:

    • Dimensions:80*45*20.5mm
    • Weight: 68.8g

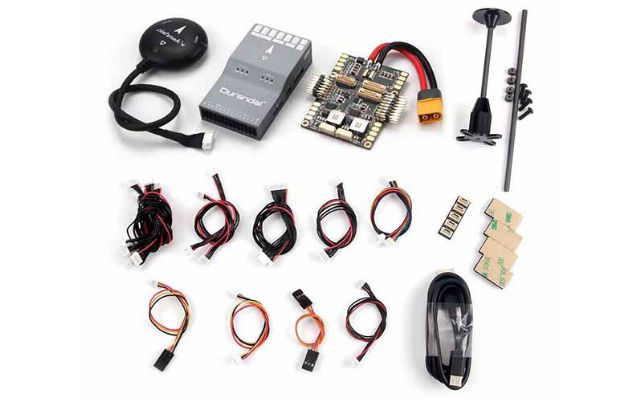

    • 1x Holybro Durandal H7 Open-source Flight Controller W/ PM02 V3 Power Module
