Out of stock

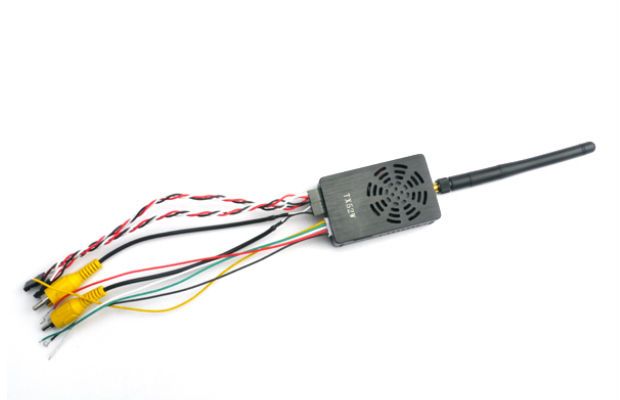

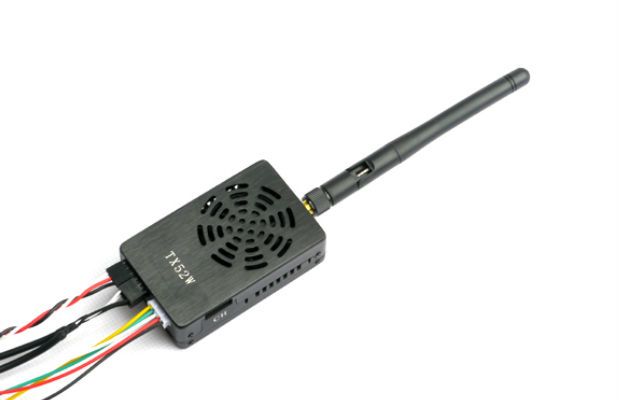

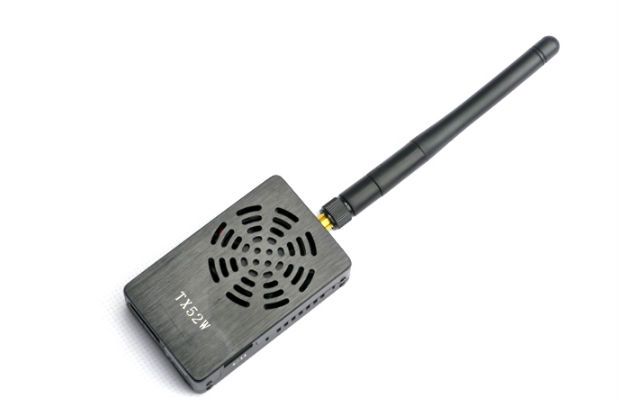

FPV 5.8G 8CH 2000mW A/V Transmitter (TX) TX52W | SMA, jack

  • 2 ways signal inputs, input signal is switchable in air.
  • Transmitting frequency is switchable in air



share


$131.00
AUD $131.00
    • Video format supported: NTSC/PAL
    • Antenna connection: SMA, jack (module side ) See connector type diagram
    • Power input: 12V (3S Lipo suggested)
    • Video output ports number: 2
    • Weight: 80g



    Working frequencies:

    • 5705 5685 5665 5645 5885 5905 5925 5945
    • 5733 5752 5771 5790 5809 5828 5847 5866
    • 5740 5760 5780 5800 5820 5840 5860 5880
    • 5865 5845 5825 5805 5785 5765 5745 5725



    * Hint: High power transmitting device may cause greater interference to other devices, please install the transmitter away from sensitive accessories like receiver, IMU, GPS etc. of your system.

    * Do make sure the TX antenna is installed securely before power on high power transmitting module, improper antenna or without antenna may cause permanent damage to the TX, and it is highly suggested not to replace the original antenna for this device.

    • 1 x receiver (RX)
    • 1 x antennas (2db)
    • 1 x power wire



    Requires:

    • 1 x transmitter (TX)

  • FPV 5.8G 8CH 2000mW High Power A/V Transmitter (TX) TX52W | SMA, jack_Manual
