FPV 5.8G 1000mW A/V Transmitter 10058T - RP-SMA, jack


share


$96.99
AUD $96.99
    • Video format supported: NTSC/PAL
    • Antenna connection: RP-SMA, jack (module side )  See connector type diagram
    • Working channel number: 8
    • Power input: DC +7V to +15V (12V is recommended)
    • Working currency: 910mA @ 12V
    • Antenna Impedance: 50Ω
    • Antenna Gain: 2dB
    • Weight: 53g
    • Dimension: 85 x 26 x 28mm (excluding antenna)

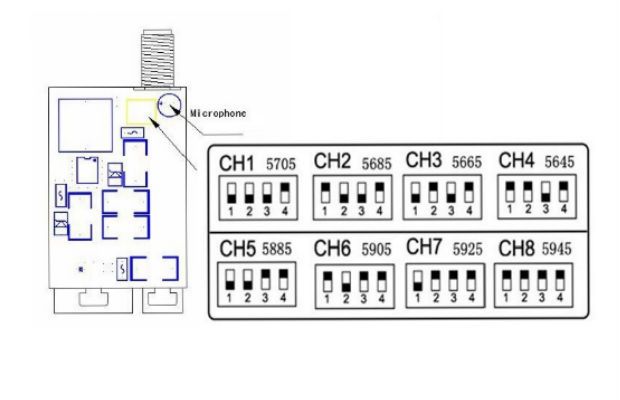

    Working frequency:

    • CH1 --- 5705 --- MHz
    • CH2 --- 5685 --- MHz
    • CH3 --- 5665 --- MHz
    • CH4 --- 5645 --- MHz
    • CH5 --- 5885 --- MHz
    • CH6 --- 5905 --- MHz
    • CH7 --- 5925 --- MHz
    • CH8 --- 5945 --- MHz

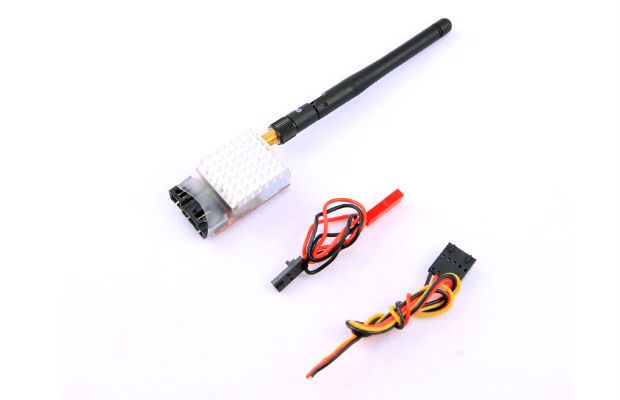

    • 1 x A/V transmitter (TX)
    • 1 x antennas
    • 1 x wire set
    • 1 x A/V transmitter (TX)
    • 1 x antennas
    • 1 x wire set

  • Manual

  • Domestic Shipping starts at $14.50 for this item plus $10.50 for each additional item . International Shipping starts at $19.99 for this item plus $10.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
