Slip Ring For iPower Gimbal Motors

Out of stock

Slip Ring For Power Brushless Gimbal Motor GBM5208H-180T etc. 12.5mm 12 Circuits

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure.The 12U-12, with 12 wires and compact 12.5mm body diameter. uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. 12U-12 is Compatible with data bus protocols,Transfers analog and digital signals.

• 12 circuits

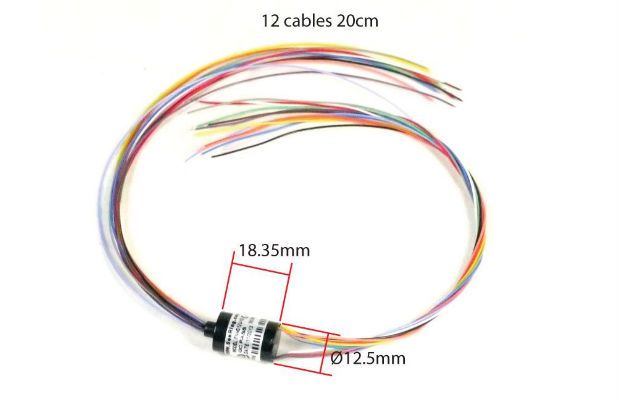

• Compact size: 12.5mm(diamter)*18.5mm(L)
• Gold-on-gold contacts
• Compatible with data bus protocols
• Transfers analog and digital signals
• Speeds up to 250 rpm continuous
• Precision ball bearings meet or exceed life requirements for most commercial applications

Benefits

• Smooth running
• Low torque
• Compact dimemsions
