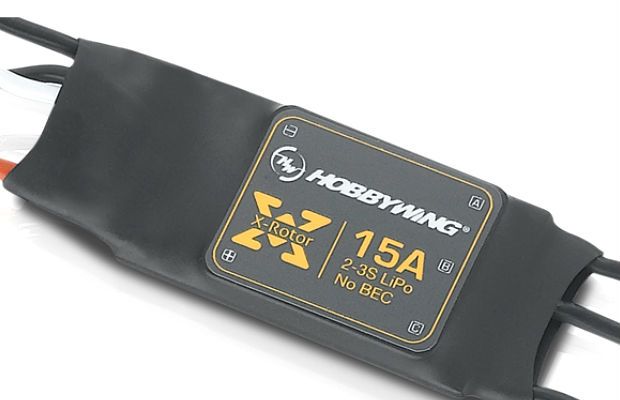

HOBBYWING X-Rotor 15A Series 2-3S 15A ESC for Multicopter

  • Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
  • Specially optimized software for excellent compatibility with disc-type motors.
  • DEO (Driving Efficiency Optimization) technology significantly reduces the ESC temperature,improves the throttle response, and strengthens the stability and flexibility of multi-rotors. This ESC is quite suitable for QAVs. (The motors slow down rapidly, especially when reducing the throttle amount.)
  • Compatible with “Regular” signal-receiving mode (that is the ESC can receive regular throttle signals range from 1100μs to1940μs) and “One Shot” signal-receiving mode (that is the ESC can receive fixed throttle signals range from 125μs to250μs).
  • The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
  • In “Regular” signal-receiving mode, the ESC is compatible with various flight-controllers and supports a signal frequency of up to 500Hz.

share


$39.99
AUD $39.99
    • Power input: 2-3S Lip
    • Continuous current: 10A
    • Peak current: 15A ( for 10 seconds)
    • BEC output: NO
    • Connector: 2.0mm banana type
    • Timing option: high/ medium

    Note:
    For 250 or 300 class multi-rotors, we recommend using 1806 size or 2204 size motors and 5 inch or 6 inch propellers. (Because bigger propellers or motors may cause the ESCs to get burnt because of overload, so users need to take the risk themselves if they persist in using propellers or motors beyond our recommendation.).

    The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.

    • 1  Hobbywing X-Rotor ESC
  • Domestic Shipping starts at $6.00 for this item plus $2.00 for each additional item . International Shipping starts at $9.00 for this item plus $3.00 for each additional item. Shipping availability to your country and Total Shipping will be finalized at check out.
