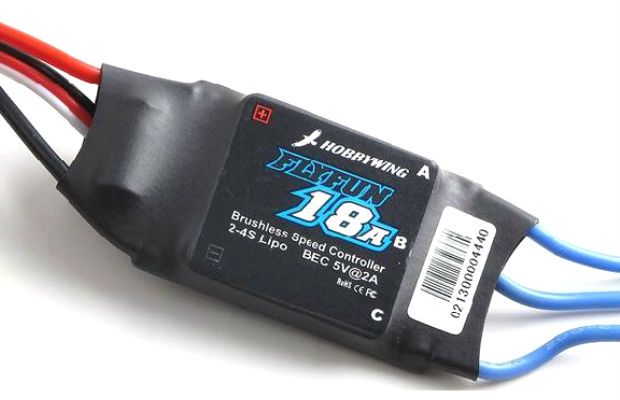

The FlyFun 18A HobbyWing ESC is a compact and light-weight ESC which can be programmed using the optional HobbyWing LED Programming Card (available separately) or from your transmitter using the appropriate sequence of stick movements.


Features

  • Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
  • Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

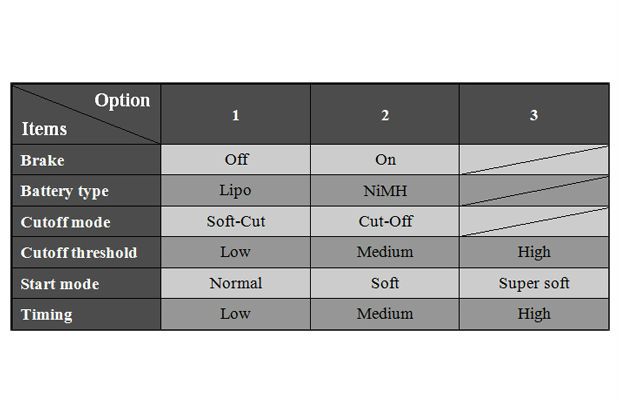

  • User programmable.
  • Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
  • Compatible with Lipo battery and NiCd/NiMH battery.
  • Internal timing can be changed to be suitable for different brushless motors.
  • Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
  • Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

share


$49.00
AUD $49.00
    • Output: Continuous 18A, Burst 22A up to 10 seconds.
    • Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery.
    • BEC: 2A / 5V Linear mode BEC.
    • Refresh rate of the throttle signal: 50Hz to 432Hz.
    • Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
    • (BLM = BrushLess Motor)
    • Size: 55mm*25mm*6mm.
    • Weight: 21g.
    • 1 x ESC
