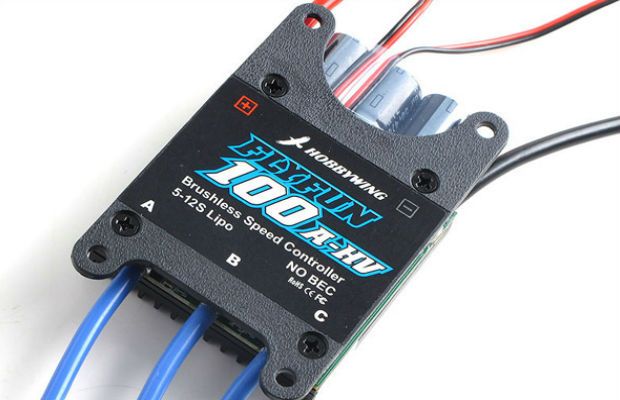

HOBBYWING 100A-HV Brushless Electric Speed Controller (5-12S LiPo)

  •  Safety arming feature: Regardless the throttle stick position, the motor will not spin  after       battery connected.
  •  Anti-spark circuit eliminates sparks when the battery pack is connecting with the  ESC.
  •  Throttle calibration funtion: Throttle range can be calibrated to be compatible with  different transmitters.
  •  User programmable.
  •  Compatible with Lipo battery and NiCd/NiMH battery.
  •  Internal timing can be changed to be suitable for different brushless motors.
  •  Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal  loss protection.
  • 8 The throttle signal is transfered through optical / electrical coupled system to avoid electromagnetic interference.
  • 9 Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.

share


$188.00
AUD $188.00
    •  Output: Continuous 100A, Burst 120A up to 10 seconds.
    •  Input Voltage: 5-12 cells lithium battery or 15-36 cells NiCd/NiMH battery.
    •  BEC: None.
    •  Refresh rate of the throttle signal: 50Hz to 432Hz.
    •  Control Signal Transmission: Optical / electrical coupled system.
    •  Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
    •  (BLM = BrushLess Motor)
    •  Size: 88mm (L) * 55mm (W) * 18mm (H).
    •  Weight: 112g.
    • 1  ESC
