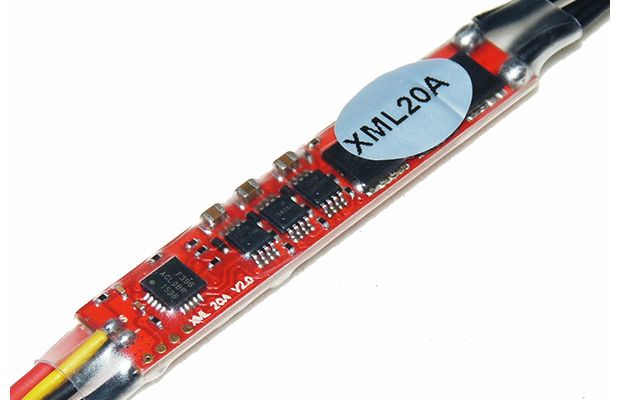

DYS XM Series 20A Mini 3-4S ESC

DYS XM Series 20A 3-4S High Frequency Mini Speed Control XML20A (BLHeli Firmware, support Oneshot125)

• XM series esc is an upgraded version from SN series, the basic frequency up to 50MHz and processing capacity is faster to support high KV motor properly by using the advanced processor.Specially designed for Multi-crotors, fast throttle respond;
• Throttle signal is twisted pair cable, reduce the crosstalk while the signal transfer by the copper wire and flight more stable;
• Use new process ultra-low resistance MOSFET with miniaturization, and all flashes are N MOS with high withstanding current;
• Minaturization design, XM10A/20A with high performance capacitor fliter on the board,
• weight reduce to 2g, also already thicken the PCB copper specially and low heat for small aircraft.
• Support high frequency maximum up to 500Hz throttle signal, compatible with all flight controls; Support ultra-high frequency Oneshot125 and high PWM frequency up to 3000Hz, flight response will be more sensitive and rapid, throttle liner will be better and shooting will be more smooth. It is the first choice for multicopter and racing.
• Throttle lever travel and other settings are available to be set by USB linker; Support two-way mode and 3D mode for racing frame.
