TULE 10A UBEC

TULE 10A UBEC (2-6S Lipo input, output adjustable)

High efficiency DC-DC voltage regulator chip, conversion efficiency over 90%; The output voltage can be adjusted in four shifts (5.0V/6.0V/7.4V/8.4V), which can meet the requirements of various voltage specifications.
- Dual parallel output, which can carry larger current;
With BEC through protection function, it can avoid the damage of receiver,
steering gear and other equipment when the input voltage of UBEC is directly
injected into the output when the UBEC is accidentally damaged.
- It has the functions of over-current protection, short circuit protection at
output and over-heat protection, and is safe and reliable.
- External switch, can easily open and close UBEC;
The exquisite metal shell helps to dissipate heat and reduce electromagnetic
interference.

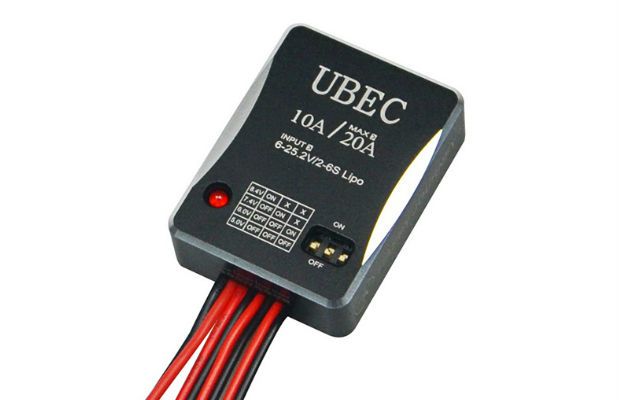

- It has a working state indicator, which lights up when UBEC is working normally. Four adjustable output voltages can be set by three-digit switch:
5.0V/6.0V/7.4V/8.4V.
5.0V Output: Switch 1.2.3 all dialed to OFF position
6.0V Output: Switch 1.2 to OFF position, switch 3 to ON position
7.4V Output: Switch 1 dials to OFF position, switch 2 dials to ON position, switch 3 arbitrary position
8.4V Output: Switch 1 dials to ON position, switch 2.3 dials to arbitrary position Product Details
