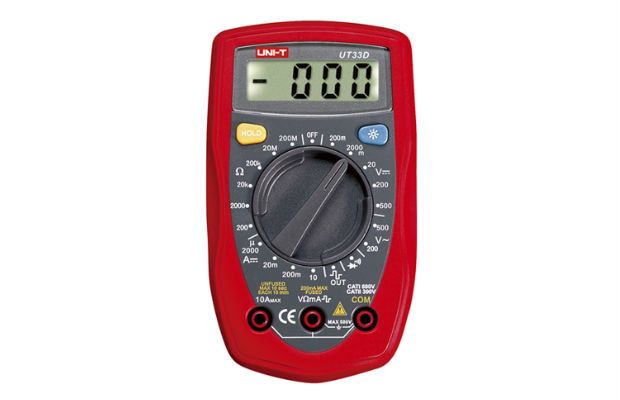

UNI-T Palm-Size Digital Multimeter UT33D

• Basic Functions Range Best Accuracy
• DC Voltage 200mV/2000mV/20V/200V/500V (0.5%+2)
• AC Voltage 200V/500V (1.2%+10)
• DC Current 2000mA/20mA/200mA/10A (1%+2)
• Resistance 200W/2000W/20kW/200kW/20MW/200MW (0.8%+2)
• Special Functions
• Diode
• Continuity Buzzer
• Square Wave Output
• Data Hold
• Display Backlight
• Low Battery Display
• Input Impedance for DC
• Voltage Measurement Around 10MW
• Max. Display 1999

GENERAL CHARACTERISTICS

• Power 9V Battery (6F22) (not included)
• LCD Size 48 x 16mm
• Product Colour Red and Grey
• Product Net Weight 156g
• Product Size 130 x 73.5 x 35mm
• Standard Accessories Test Lead, Battery, English Manual, Holster
• Standard Individual Packing Gift Box
• Standard Quantity Per Carton 60pcs
• Standard Carton Measurement 490 x 356 x 315mm
• (Around 0.055 CBM Per Standard Carton)
• Standard Carton Gross Weight 18kg

MAKE SURE THE CORRECT MODE AND RANGE IS SELECTED DURING TESTING, DAMAGE DUE TO WRONG MODE OR WRONG RANGE IS NOT COVERED BY WARRANTY.
* WHEN MEASURE CAPACITORS, MAKE SURE THE CAPACITORS ARE DISCHARGED (CAN BE DONE BY SHORT CIRCUIT THE TWO LEGS OF THE CAPACITORS), FAILURE SO MAY CAUSE DAMAGE TO THE MULTI-METER.
