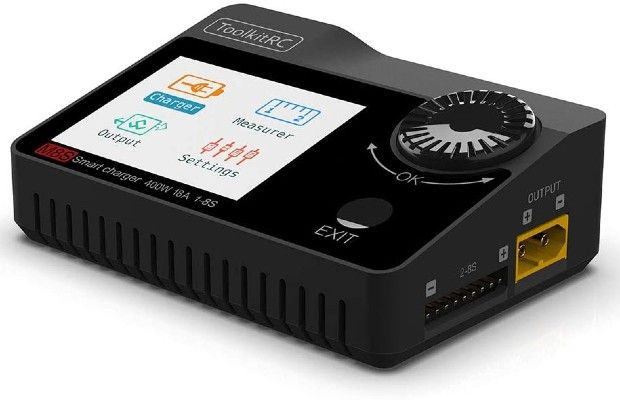

ToolkitRC M8S 400W 5A 2-8S Balance Charger/ Cell Checker/ Watt Meter/ Servo Tester - Black

The ToolkitRC M8 is a multi-function device, besides a 300w 15A charger, it integrated with a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.


Battery Charger
Cell Checker
Servo Tester
PWM,PPM.SBUS Input/output Receiver & Flight control tester
Viable AMp/volt DC Power supply (Required external DC input)

share


$125.40
AUD $125.40
    • Charge, discharge and balance management support LiPo, LiHV,
    • LiFe 1-8S，NiMh 1-20S，PB 1-12S battery.
    • Charger current：MAX 15A @ 300W
    • Discharge current：reccycle mode 15A @ 300W Normal: 3A @ 20W
    • Balance current: 400mA @ 2-8S
    • Lithium battery cut-off voltage can be set (TVC function)
    • Measure battery voltage, internal resistance, balance
    • ESC power meter, together with output voltage and throttle signal
    • Measure PWM / PPM / xBUS signal values, Accuracy 1ms
    • Output PWM / PPM / xBUS standard signal, Accuracy 1ms
    • Customizable 5-30V constant voltage, 1-15A constant current
    • Charge the drone battery, activate and charge.
    • Multi-language optional
    • USB 2.1A@5.0V Output，for Mobile devices
    • Udisk firmware upgrade (Slave device)



    Charger

    • Input voltage: 7.0-30.0V @MAX 16A
    • Type of battery: Lipo LiHV LiFe @1-8S
    • NiMh @1-20S Pb @1-10S
    • Balance current: 400mA @2-8S
    • Charge power: 300W @MAX 15A
    • Discharge power: 300W @MAX 15A Recycle mode
    • 12W @ 3A Normal mode
    • USB: 2.1A @5.0V or Upgrade
    • Dimensions: 98*68*35 mm
    • Weight: 142g
    • LCD: 2.2inch, 132*64 Pixel，black and white



    Measurement

    • PWM: 880-2200us @20-400Hz
    • PPM: 880-2200us*8CH @20-50Hz
    • SBUS: 880-2200us*16CH @20-100Hz
    • Voltage: 1.0-5.0V @1-8S
    • IR: 10-500mR @1-8S
    • ESC: 300W @Max 15A



    Output

    • PWM: 880-2200us @20-400Hz
    • PPM: 880-2200us*8CH @20-50Hz
    • SBUS: 880-2200us*16CH @20-100Hz
    • Power: 1.0-30.0V @1.0-15A Mode:CC+CV
    • OverCurrent Cut Off time: 50ms
    • 1 x ToolkitRC M8 Muti-function charger
